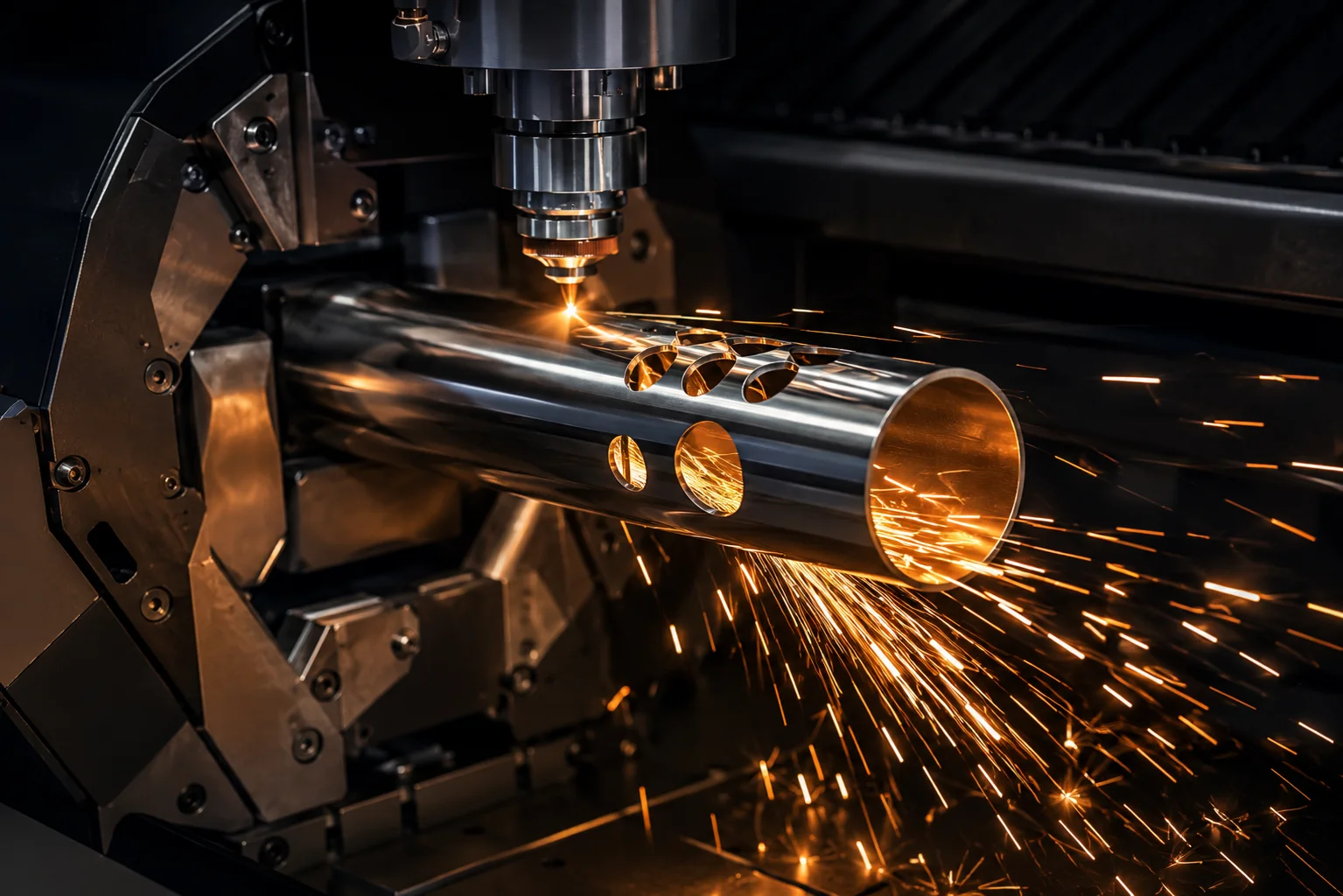

Precision Laser Tube Cutting for Complex Medical Geometries
Why Laser Med Tech for Precision Laser Tube Cutting for Complex Medical Geometries
Precision cutting technologies for medical-grade tubing require tighter tolerances than most job shops can hold. Laser Med Tech cuts tube in nitinol, titanium, stainless steel, and aluminum with a focus spot under .001" in diameter — tight enough for hypotube, catheter shaft, and structural implant profiles. Seven years of medical and aerospace tube-cutting experience. Fully insured. Call (612) 800-0784 and reach Gary directly.
Our two-axis laser tube cutters run CAM-driven toolpaths converted directly from your DXF or IGES drawing. No manual reprogramming, no geometry approximation. The laser evaporates material at the focal point rather than shearing it, so you get a clean edge with minimal heat-affected zone — critical for nitinol's superelastic properties and titanium's biocompatibility requirements. Cost drivers include wall thickness, alloy type, feature complexity, and total linear cut length. Every job is different — contact Laser Med Tech for an accurate estimate.
Have a project in mind?
Talk to our owners directly — same-day response.

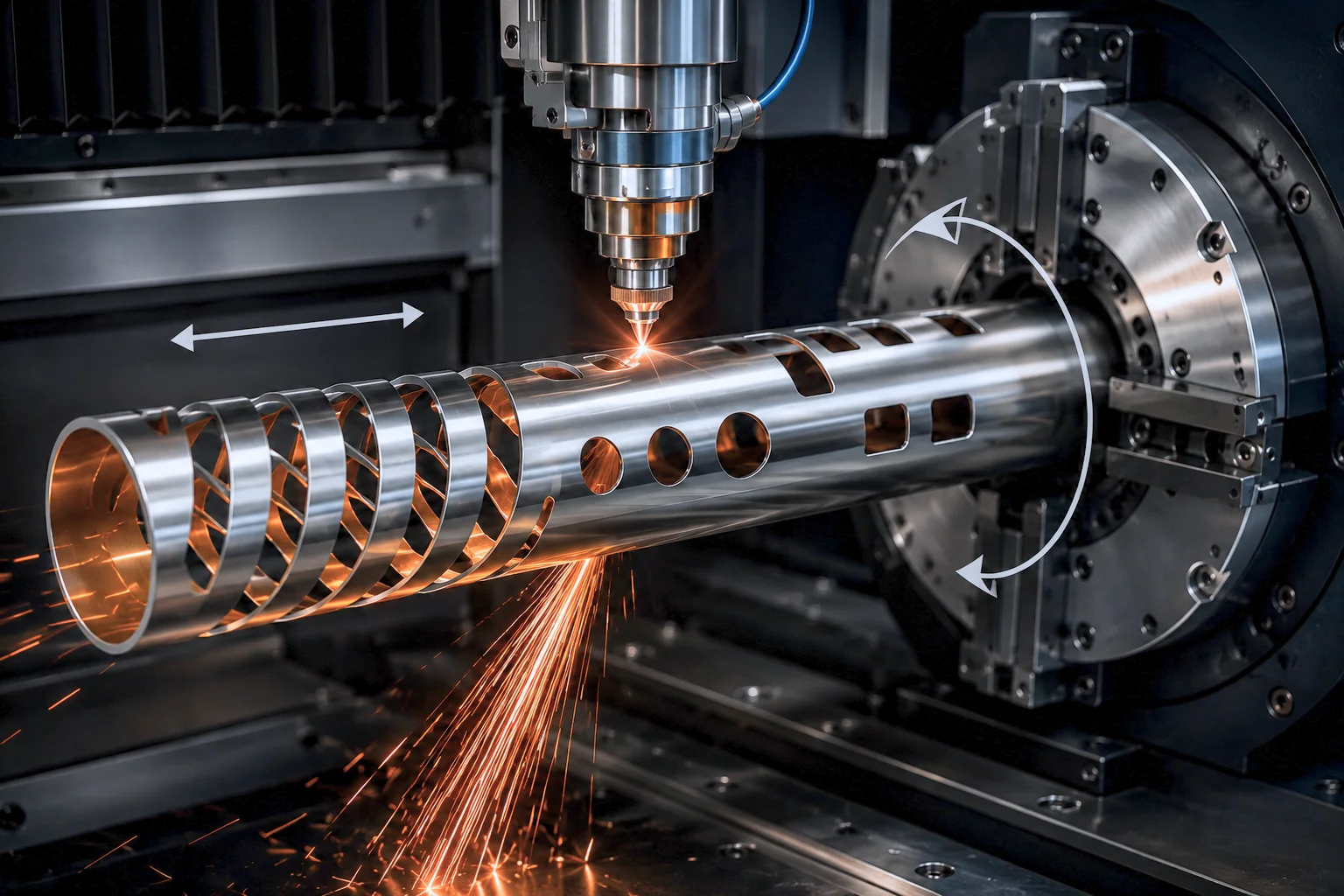

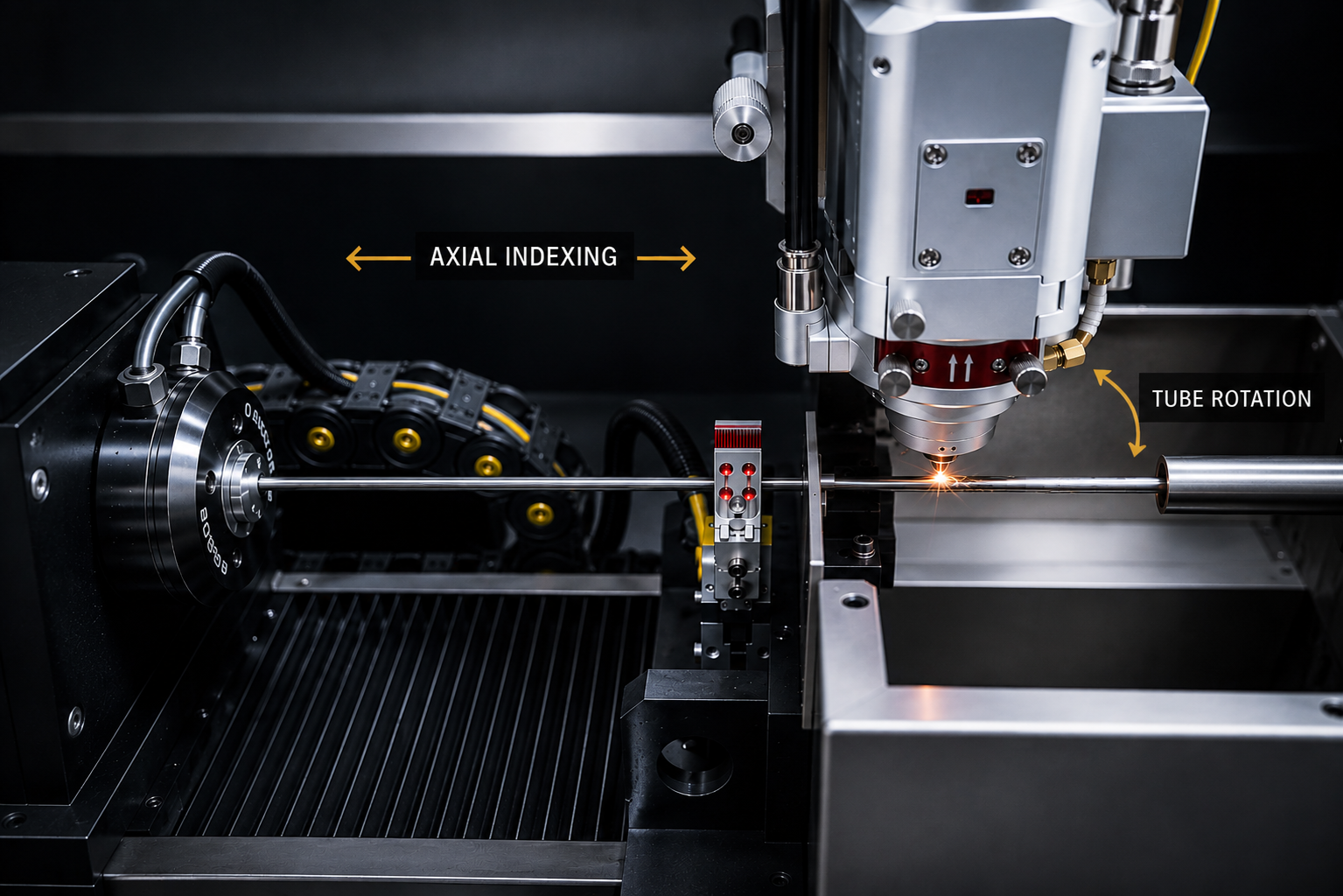

How Two-Axis Tube Cutting Actually Works

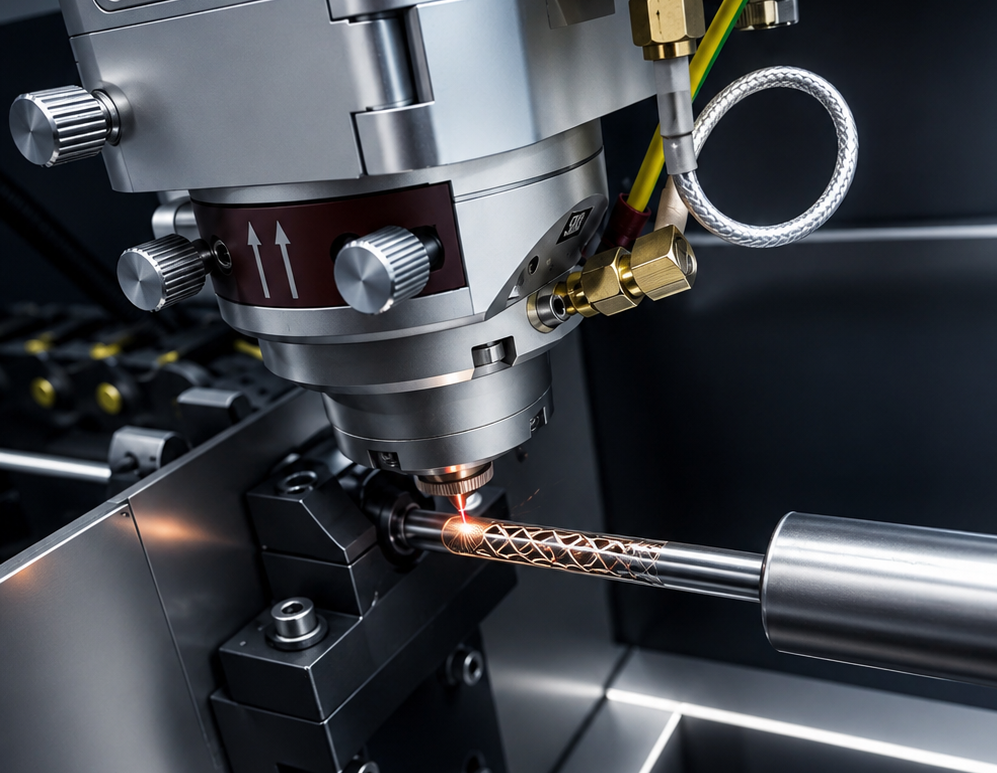

The tube rotates on a precision chuck while the laser head indexes axially. Two-axis motion lets us cut slots, holes, windows, and helical patterns in a single setup. No fixturing changes mid-run. Our CAM software ingests your drawing and generates the cut path automatically — if your file is clean, turnaround from receipt to first-article is fast. That's not a marketing line. It's how the machine works. Complex geometries that would require multi-step EDM or mechanical milling get cut in one pass. See our facility for equipment details.

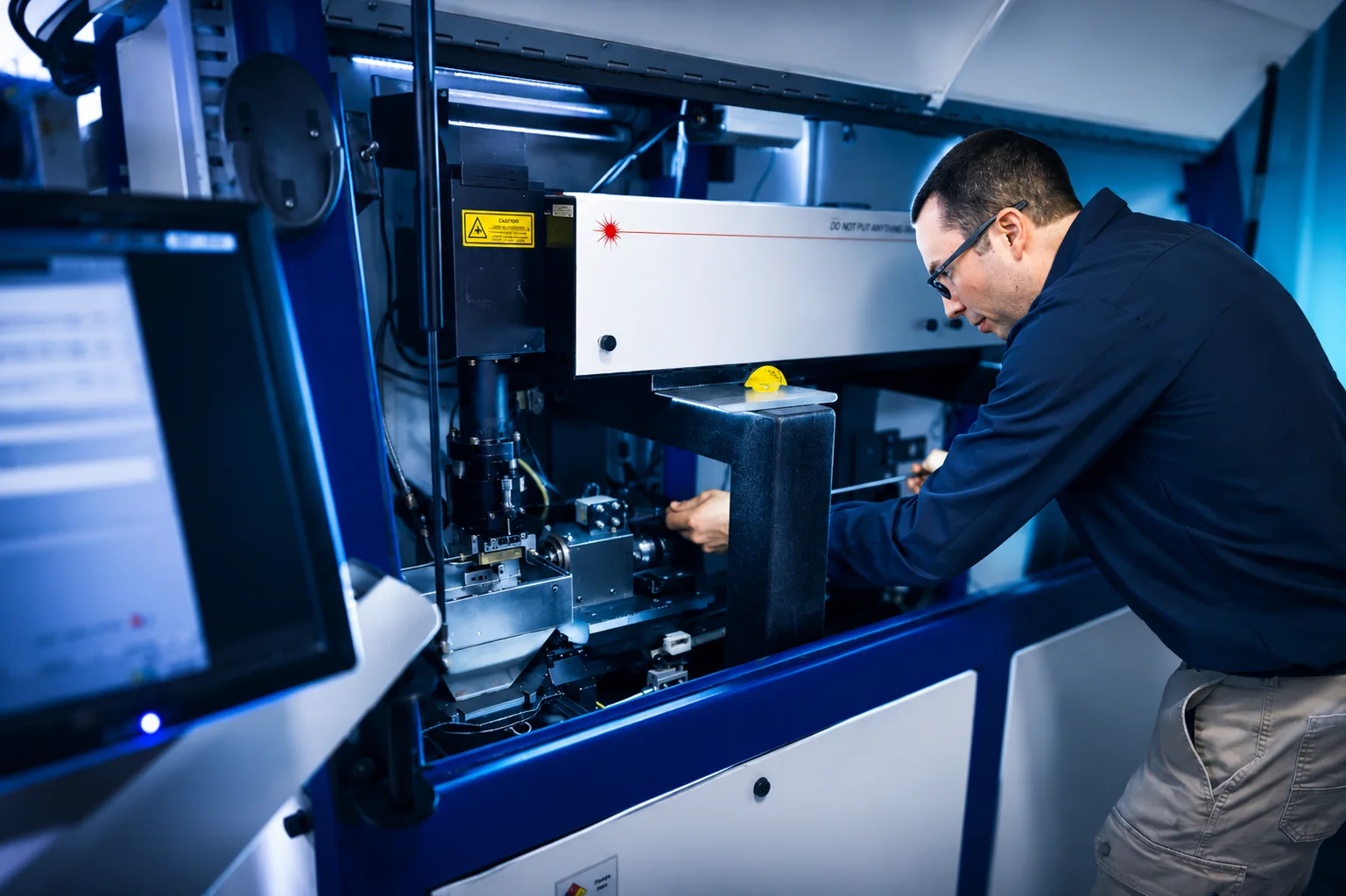

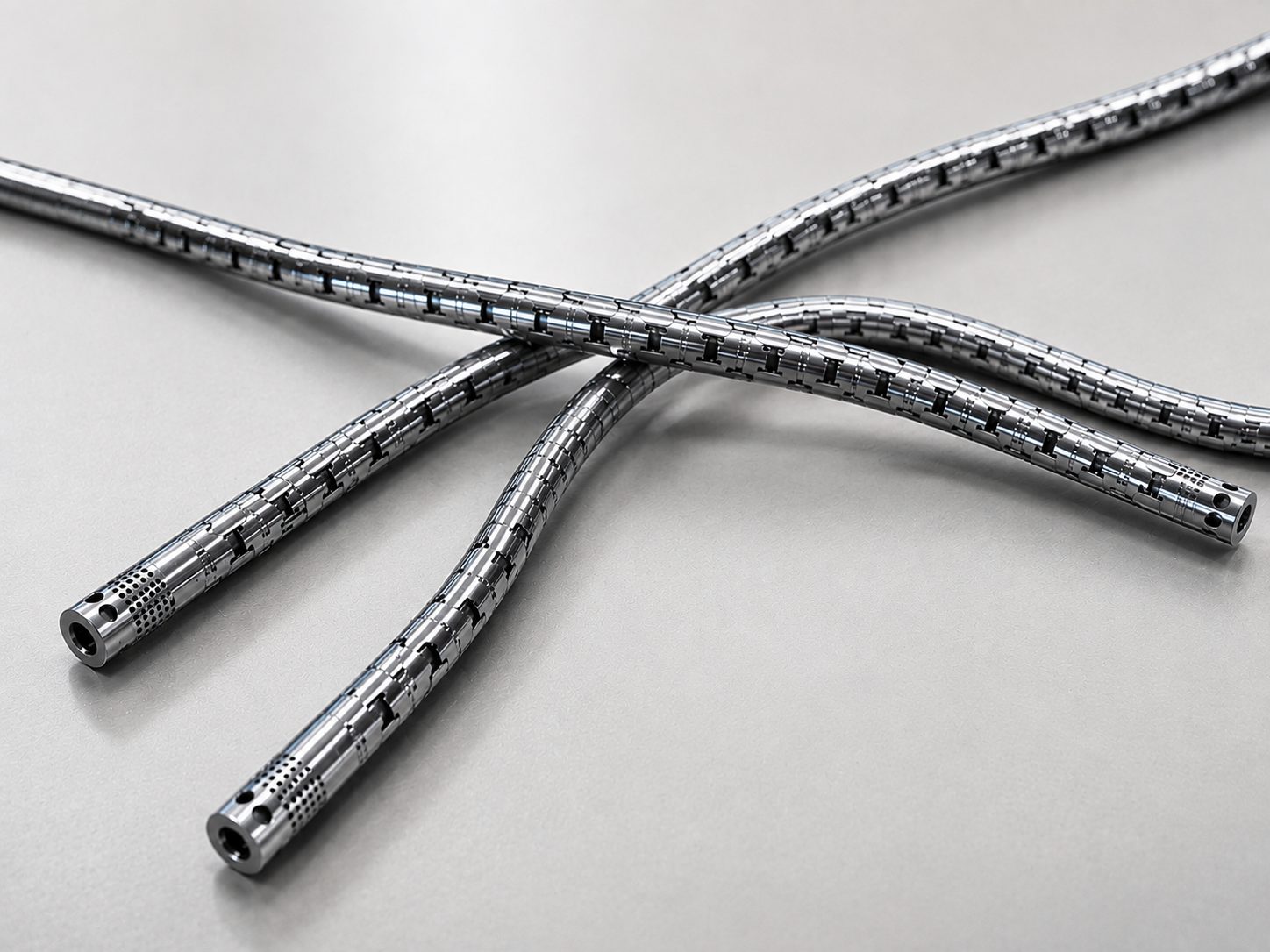

Materials We Cut and Why Alloy Choice Matters
Not every laser handles every alloy well. Nitinol is the hard one — it work-hardens if you touch it mechanically, and its austenite finish temperature shifts if the heat-affected zone is too wide. Fiber laser cutting at sub-.001" spot size keeps HAZ narrow enough to preserve the transformation behavior. We also cut stainless steel (304, 316L, 17-4), titanium (Grade 2, Grade 5), and aluminum alloys. If your application calls for cleaning and passivation after cutting, we handle that in-house. No shipping between vendors, no paperwork handoff.
Want it done right?
Precision laser processing on production timelines — call to scope your project.

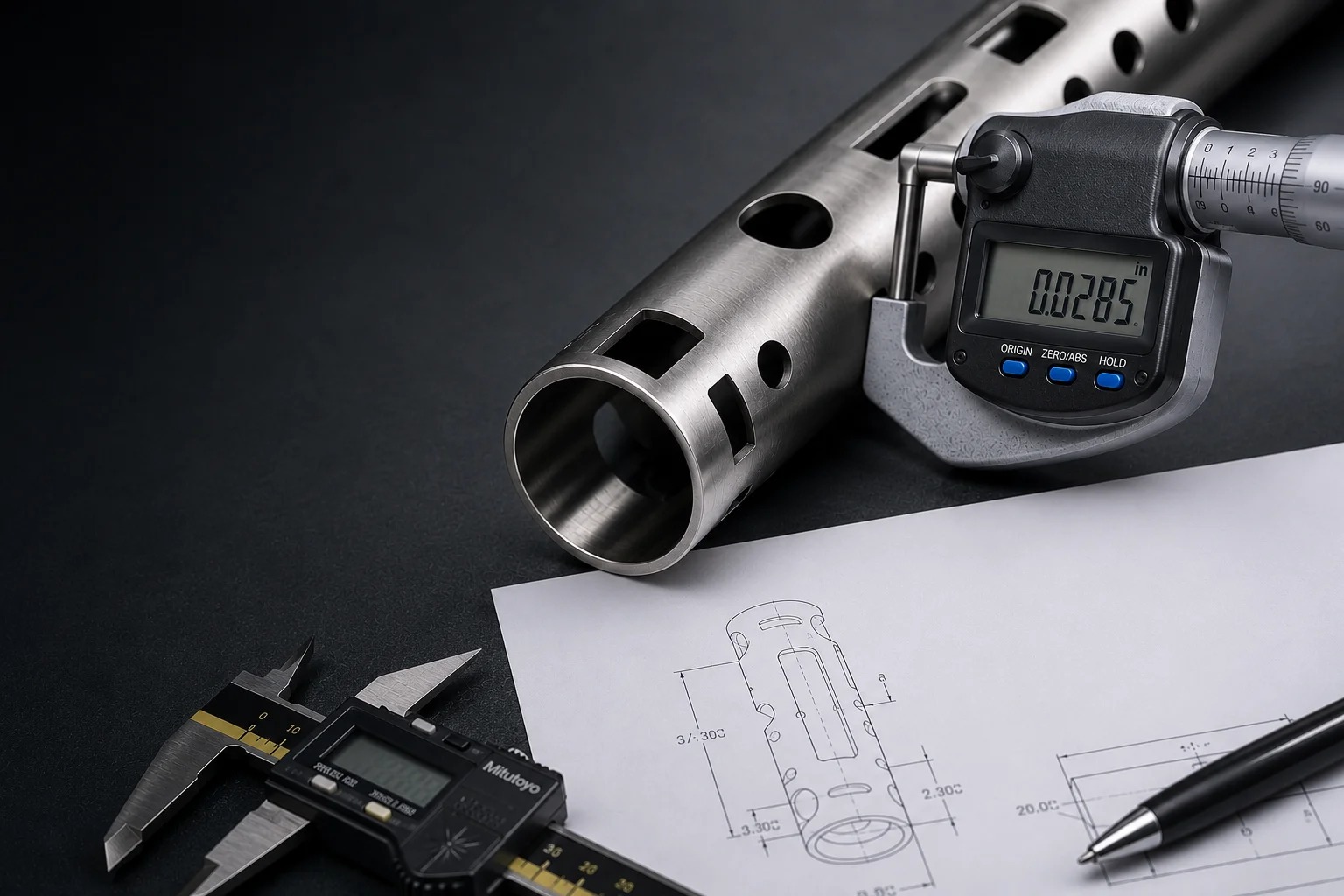

Tolerance Expectations for Laser-Cut Tube
Laser tube cutting isn't magic. Wall thickness, kerf width, and material springback all affect final dimensions. For most stainless and titanium tube, we hold feature-to-feature tolerances in the +/-.001" to +/-.003" range depending on geometry and wall. Nitinol is tighter work — expect closer review on thin-wall profiles under .010" wall. We don't promise tolerances we can't verify. Every job goes through inspection before it ships. If your application needs documented dimensional data, ask about our testing capabilities at quoting.

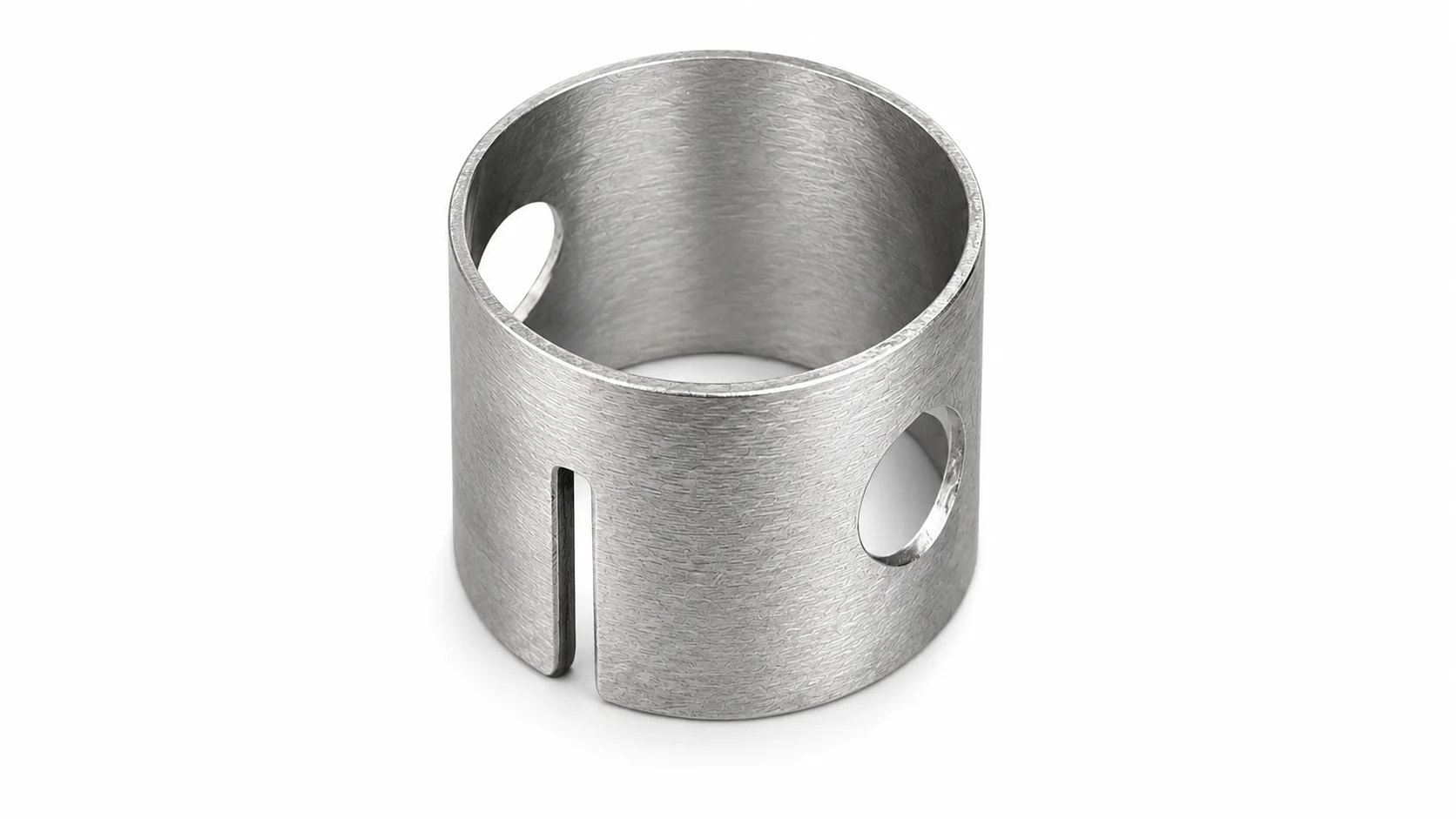

From Cut Tube to Finished Part
Tube cutting is usually one step in a longer process. After cutting, parts often need deburring, passivation, marking, or assembly. Laser Med Tech does all of it. Laser engraving for lot codes and UDI marking. Passivation for corrosion resistance on stainless implant components. Assembly and packaging for finished-device programs. Keeping the work in one facility cuts lead time and eliminates the tolerance stack-up that comes from shipping parts between three different vendors. Reach out to Gary directly at (612) 800-0784 to discuss your full scope.
Common questions
Still have questions?
Reach out to our owners directly — we'll walk you through it.
